Self-regulating heating cables are unique in that they have the ability to vary their power output along the entire length of the circuit in response to ambient temperature changes. As the temperature decreases the cable will respond by increasing power to compensate until equilibrium is achieved. The cable will decrease it's output as ambient temperatures rises. Self-Regulating heating cables are ideally suited for freeze protection and process temperature applications. A wide held belief is that self-regulating cables do not require a switching device, however we recommend that all self-regulating cables be used with one in order to save energy and extend the life of the cable.

TSL LOW TEMPERATURE

TSL Features:

  • 16 AWG buss wires for long circuits
  • Cut-to-length in the field
  • Intermittent exposure temperature up to 185°F
  • 3, 5, 8, & 10 W/Ft. power outputs
  • Up to 277VAC



TSL

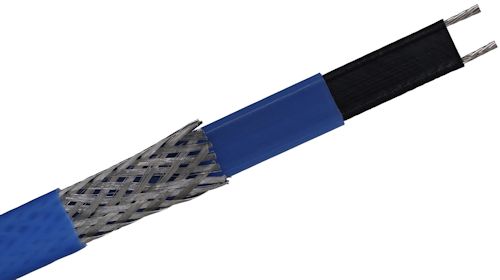

TSLm MEDIUM TEMPERATURE

TSLm Features:

  • 16 AWG buss wires for long circuits
  • Long service life
  • Cut-to-length in the field
  • Intermittent exposure temperature up to 366°F
  • 5, 10, & 15 W/Ft. power outputs
  • Up to 277VAC



TSLm

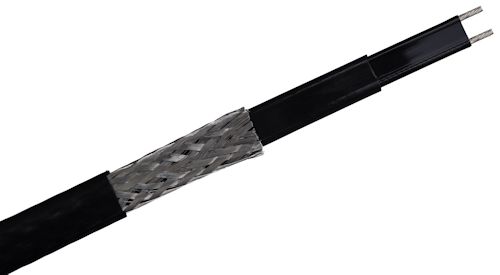

TSLh HIGH TEMPERATURE

TSLh Features:

  • 16 AWG buss wires offer long circuit lengths
  • Exceptionally long service life
  • Cut-to-length in the field
  • Intermittent exposure temperature up to 450°F
  • 5, 10, 15, 20, 25, & 30 W/Ft. outputs
  • Up to 277VAC



TSLh

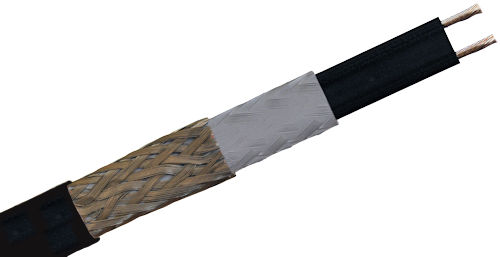

RG ROOF & GUTTER

RG Features:

  • 16 AWG buss wires for long circuits
  • Built in the US using industrial grade materials
  • Built-in UV inhibitors
  • 8 & 10 W/Ft. outputs
  • Up to 277VAC



RG

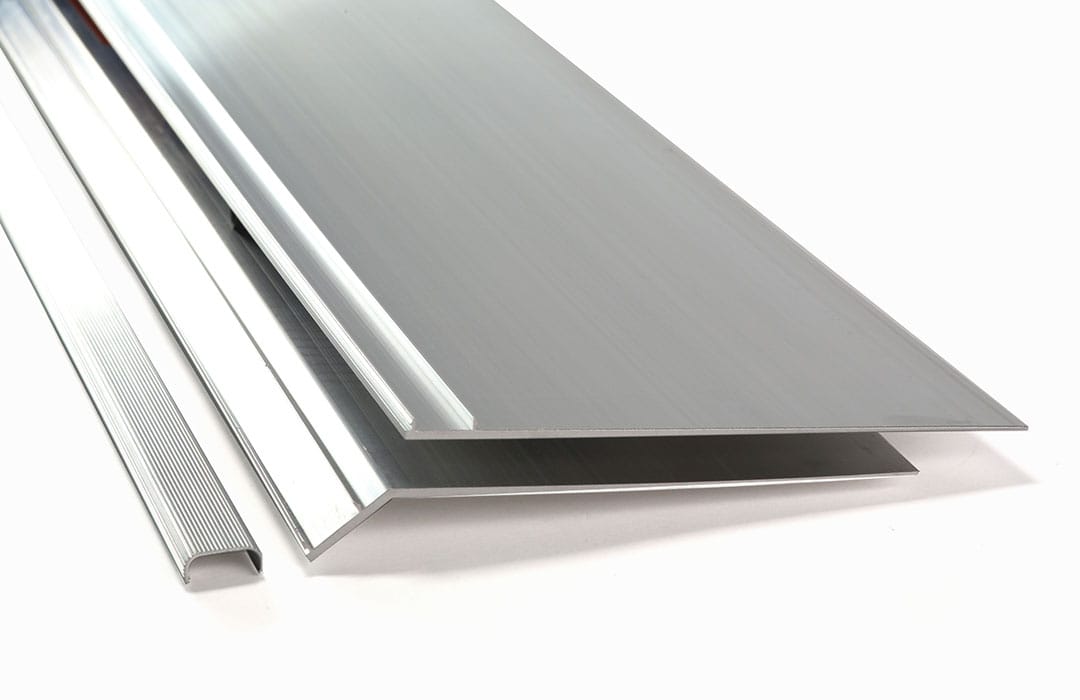

ICE CUTTER

Ice Cutter Features:

  • Aesthetically pleasing; discrete
  • Significantly reduces heat trace
  • Mechnically protects cable
  • Energy efficient
  • Reduces overall costs



Data Sheet

Manual

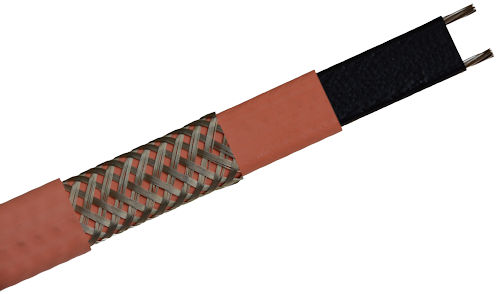

SM-B SNOWMELT

SM-B Features:

  • 16 AWG buss wires for long circuits
  • Direct burial in concrete
  • Cut-to-length in the field
  • Up to 10" Spacing
  • 29W/Ft.@240VAC, 30W/Ft.@277VAC
  • Up to 600VAC (Custom)



SMB

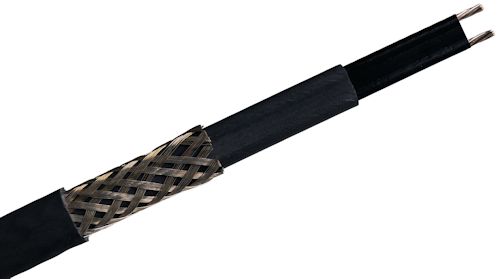

FLV LOW VOLT

FLV Features:

  • 16 AWG nickel copper buss wire
  • Intermittent exposure temperature up to 185°F
  • 3, 5, 9W/Ft. power outputs
  • 12VDC 24VDC
  • Ideal for off-grid locations and mobile ops
  • Solar/Battery powered



FLV
