Constant wattage heater cables provide constant power output throughout the entire length of the heat trace circuit. Unlike self-regulating heater cables, constant wattage cables are not susceptible to inrush currents. The cable will deliver the same amount of power along the entire length no matter how cold the ambient temperature. Constant wattage cables can also yield longer circuit lengths than self-regulating cables, especially at 480V for which there is no self-regulating cable on the market. For all practical means, constant wattage heater cables are used in conjunction with a control device, such as a thermostat or control panel. Our constant wattage heater cables are made entirely from FEP Teflon for maximum durability and offer exceptional dielectric strength. Our constant wattage cables have a maximum exposure temperature of 400°F (de-energized) which offers the same exposure capabilities of more expensive medium-temperature self-regulating cables. Constant wattage cables also offer greater return-on-investment by lasting up to 4X as long as self-regulating cables.

FEP

FEP Features:

  • 12 AWG buss wires offer the longest circuit lengths
  • Outputs up to 15 W/Ft.
  • Up to 560VAC
  • Ideal for freeze protection and process temperatures



FEP

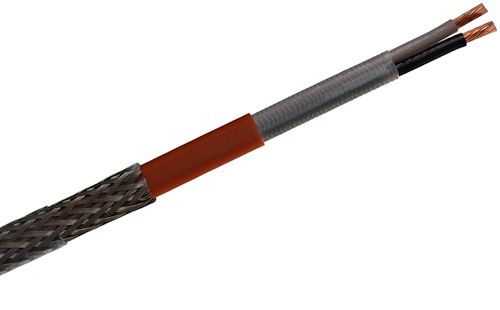

FEP-LT

FEP-LT Features:

  • 14 AWG buss wires offer long circuit lengths
  • Outputs up to 8 W/Ft.
  • Up to 277VAC
  • Ideal for freeze protection and process temperatures



FEP-LT

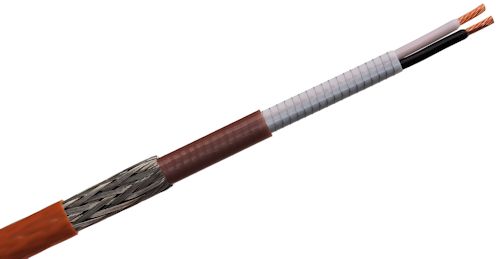

FEP-M

FEP-M Features:

  • 16 AWG buss wires offer good circuit lengths
  • Outputs up to 7 W/Ft.
  • Up to 277VAC
  • Ideal for freeze protection
  • Perfect for the refrigeration industry
  • Small and flexible for tight spaces



FEP-M

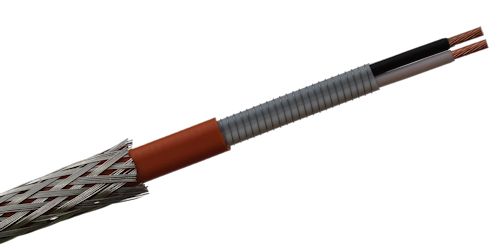

FEP-LV LOW VOLT CONSTANT WATT

FEP-LV Features:

  • 16 AWG buss wires offer decent circuit lengths
  • Outputs up to 7 W/Ft.
  • 12VDC or 24VDC available
  • Freeze protection
  • Ideal for off-grid locations or mobile ops
  • Solar/Battery Powered



FEP-LV

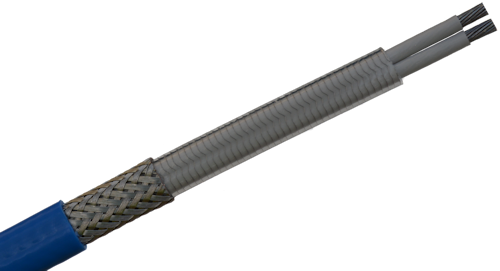

SM-C CONSTANT WATTAGE SNOW MELT

SM-C Features:

  • 12 AWG buss wires offer exceptional circuit lengths
  • More than 2X the output of conventional mats
  • Industrial grade fluorpolymer construction
  • Quick installation, cut-to-length
  • 30 W/Ft.
  • 120VAC-480VAC
  • Up to 10" Spacing
  • Direct burial in contrete/asphalt



FEP
