Accessories are an important part of a heat trace circuit and careful consideration must be observed when choosing the right termination kits. Several important considerations should be made when selecting accessories such as pipe composition, maintenance temperatures, area classifications, application type, approvals, etc. TAD & Associatesis here to help you make those important decisions if the selection process seems too daunting!

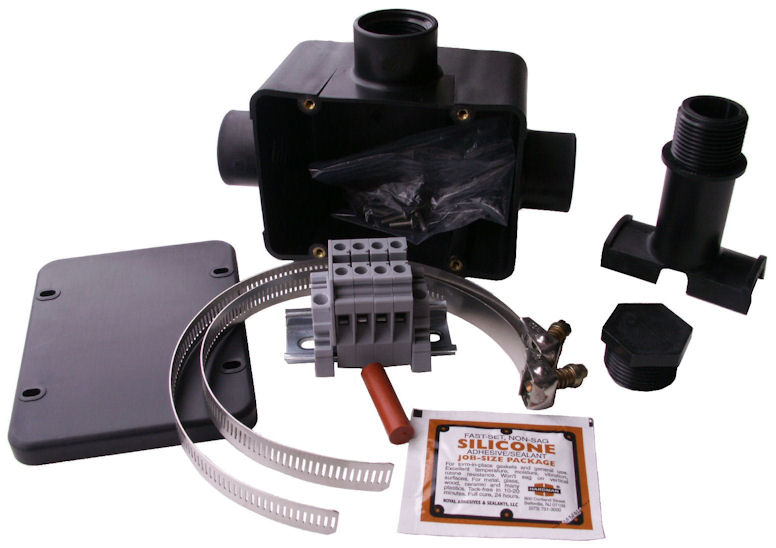

PL POWER CONNECTION KIT

The PL power connection kit can be used with both CW and SR cables. The PL comes with everything you need to complete a power and end termination. The kit includes a NEMA 4X raintight enclosure, pipe standoff, pipe straps, 1 x plug, end cap and a packet of silicone. The PL is approved for use in ordinary locations only. Click on PDF link for more details and ordering information.



PCK

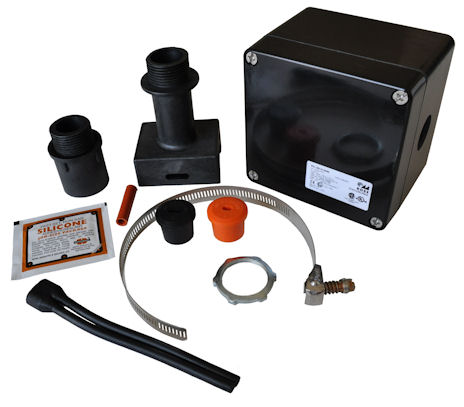

RPC POWER CONNECTION KIT

The RPC power connection kit can be used with both CW and SR heater cables. The RPC comes with everything you need to complete a power and end termination. The kit includes a NEMA 4X raintight enclosure, pipe standoff, power termination boot, grommets. The RPC is approved for use in ordinary and hazardous locations. Click on PDF link for more details and ordering information.



PCP

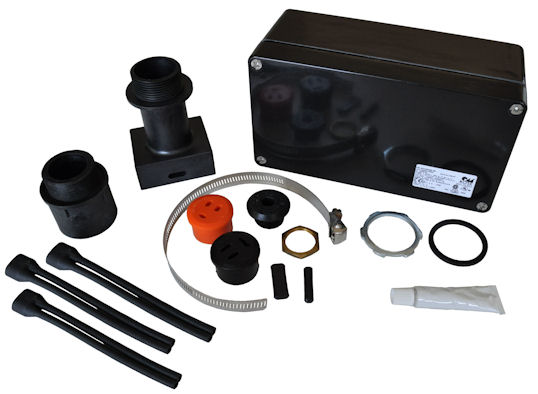

RTC MULTIPLE CONNECTION KIT

The RTC tee/power connection kit can be used with both CW and SR heater cables. The RTC comes with everything you need to complete a tee connection above the insulation or 3 power connections from one junction box. The kit includes a NEMA 4X raintight enclosure, pipe standoff, power termination boots, grommets. The RTC is approved for use in ordinary and hazardous locations. Click on PDF link for more details and ordering information.



STB

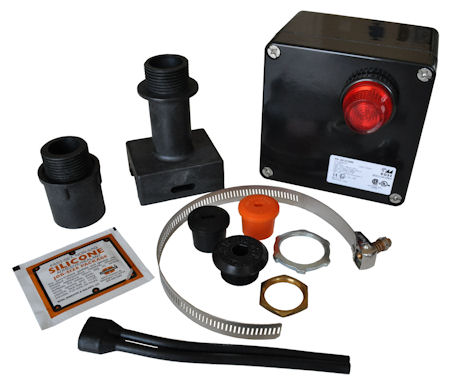

RSL MONITOR LIGHT KIT

The RSL monitor light kit can be used with both CW and SR heater cables. The RSL comes with everything you need to complete an end-of-circuit indicator light. The kit includes a NEMA 4X raintight enclosure, pipe standoff, power termination boot, grommets, LED light. The RSL is approved for use in ordinary and hazardous locations. Click on PDF link for more details and ordering information.



SLP

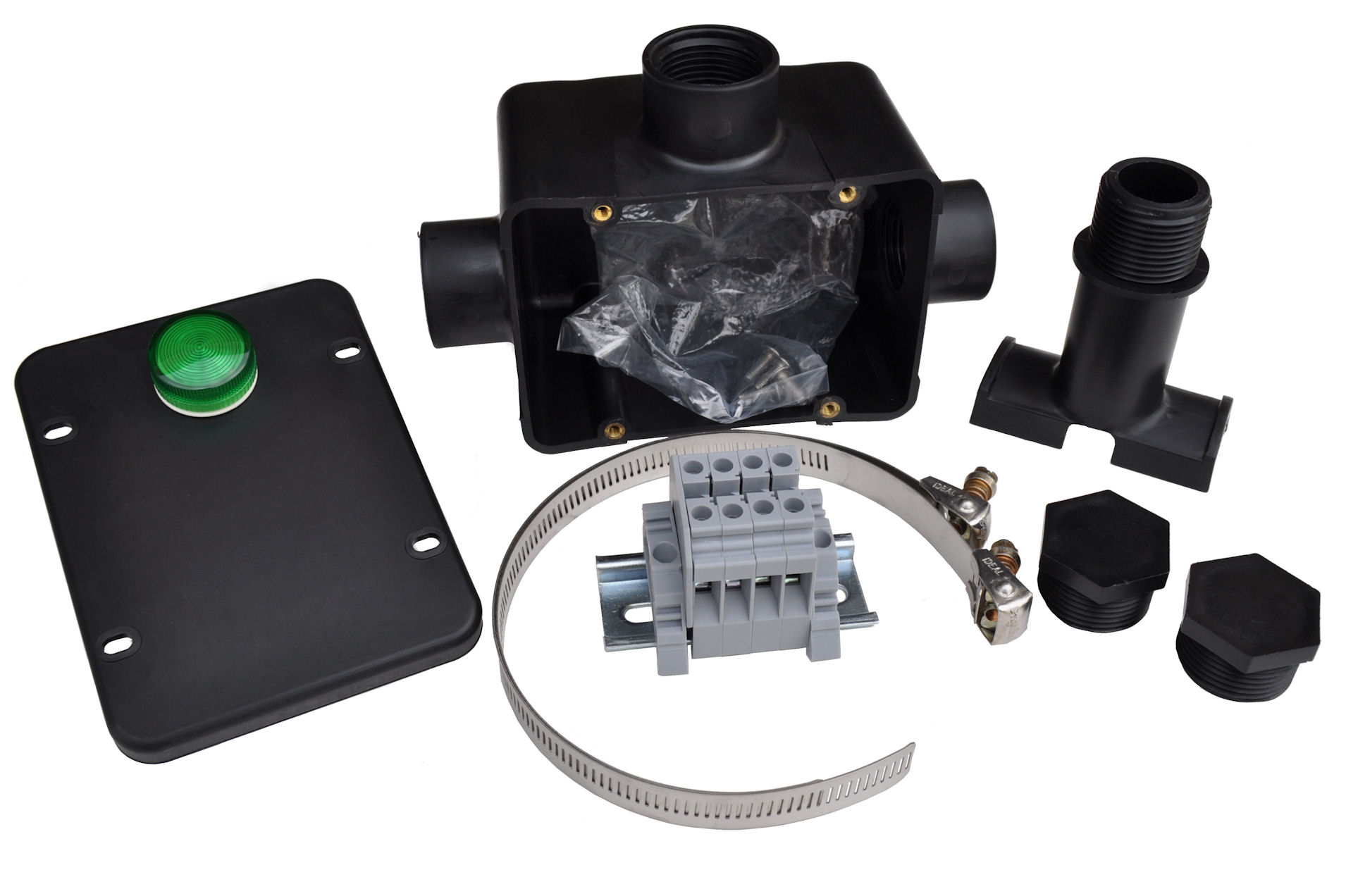

TML MONITOR LIGHT KIT

The TML monitor light kit serves as a end-of-circuit indicating light for both CW and SR heater cables. The LED gives users a visual confirmation that an electric heat tracing circuit is operating. Click on PDF link for more details and ordering information.





SLK

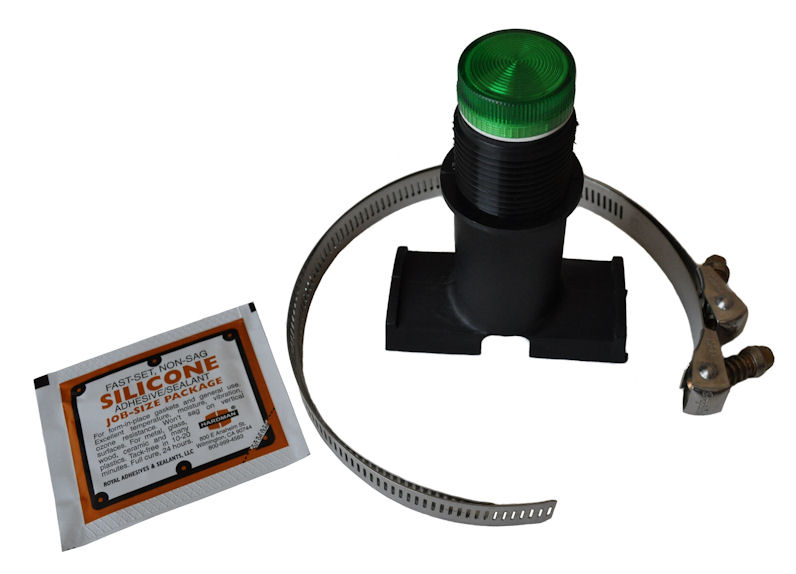

EL MONITOR LIGHT KIT

The EL signal light kit serves as a low profile end-of-circuit indicating light for both CW and SR heater cables. The LED gives users a visual confirmation that an electric heat tracing circuit is operating. Click on PDF link for more details and ordering information.





EL

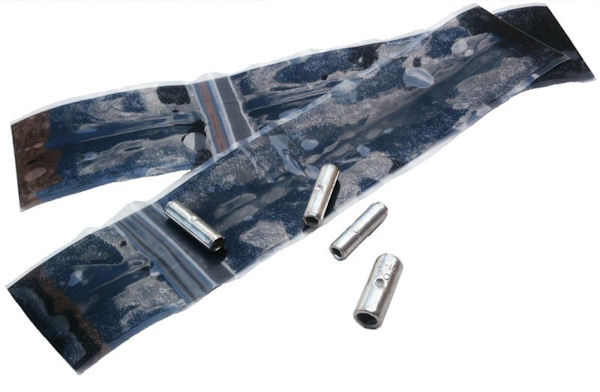

ESK INLINE SPLICE KIT

ESK inline splice kits are designed as a low cost splicing alternative to junction boxes. The ESK is intended for under-the-insulation inline splices. Click on PDF link for more details and ordering information.



ISK

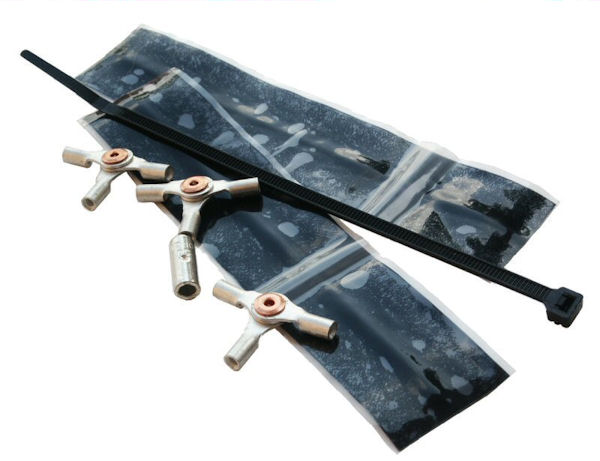

TSK TEE SPLICE KIT

TSK tee splice kits are designed as a low cost splicing alternative to junction boxes. The TSK is intended for under-the-insulation tee splices. Click on PDF link for more details and ordering information.





TSK

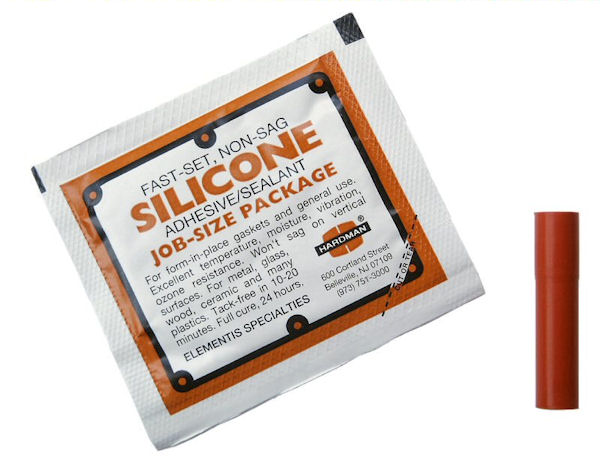

EC-1 END TERMINATION KIT

The EC end termination kit is used for completing end terminations of CW or SR heater cables. The kit comes with 1 x end cap and 1 x packet of RTV. When ordering more than one end cap 1 packet RTV will ship for every two end caps. Click on PDF link for more details and ordering information.







EC-1

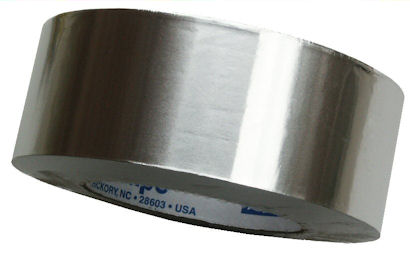

AL-1 ALUMINUM TAPE

AL-1 aluminum tape is designed to increase heat transfer between electric tracers and process pipes and vessels. Click on PDF link for more details.





AT-1

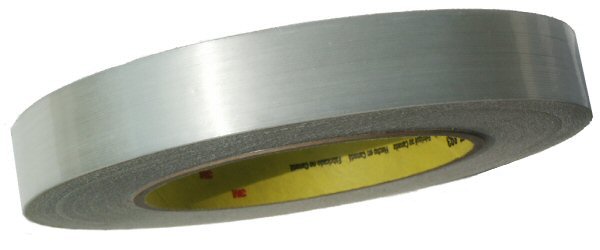

FG-1 FIBERGLASS TAPE

FG-1 fiberglass tape is used for securing heater cables to process pipe. Click on PDF link for more details.





FT-1

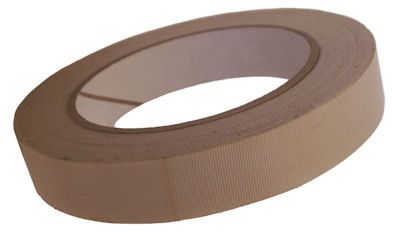

FG-3 GLASS CLOTH TAPE

FG-3 high temperature tape is used for securing heater cables to high temperature process pipes. Click on PDF link for more details.



FT-3

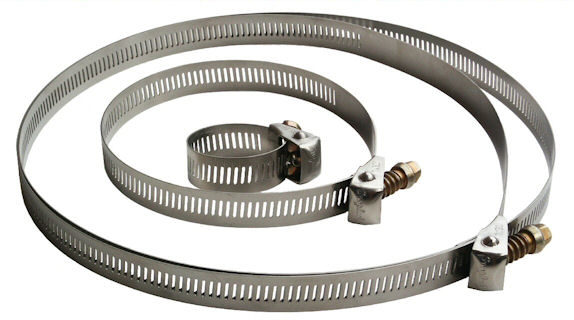

PS PIPE STRAPS

PS series pipe straps are used for securing mounting brackets, junction boxes and MI cables to process pipes. Our pipe straps are stainless steel and come in three different sizes to accommodate a range of pipe sizes up to 14" O.D. pipes. Click on the PDF link for more details.



PS

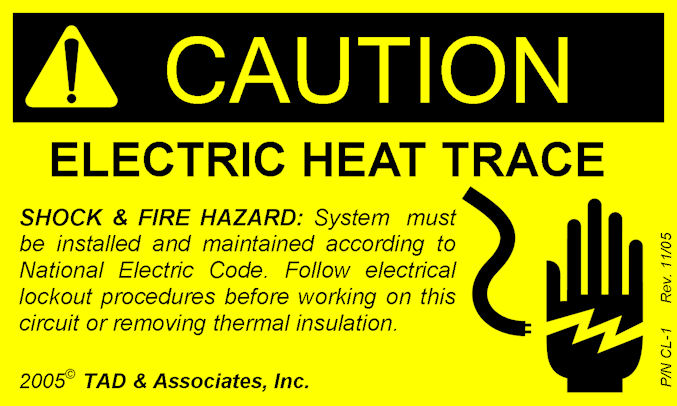

CL-1 CAUTION LABELS

CL-1 caution labels are used to help plant personnel identify heat trace circuits and to signal areas of potential electric hazards.



CL-1

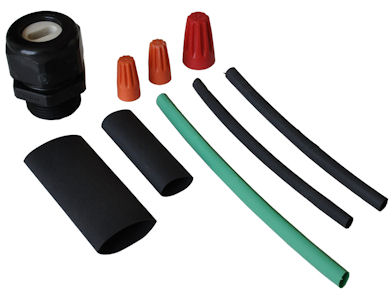

SCK-2 POWER CONNECTION KIT

SCK-2 power termination kit is used for terminating an SR heater cable into a watertight enclosure through a CGB fitting in roof & gutter applications. Click on the PDF link for more details.





PTK-RG

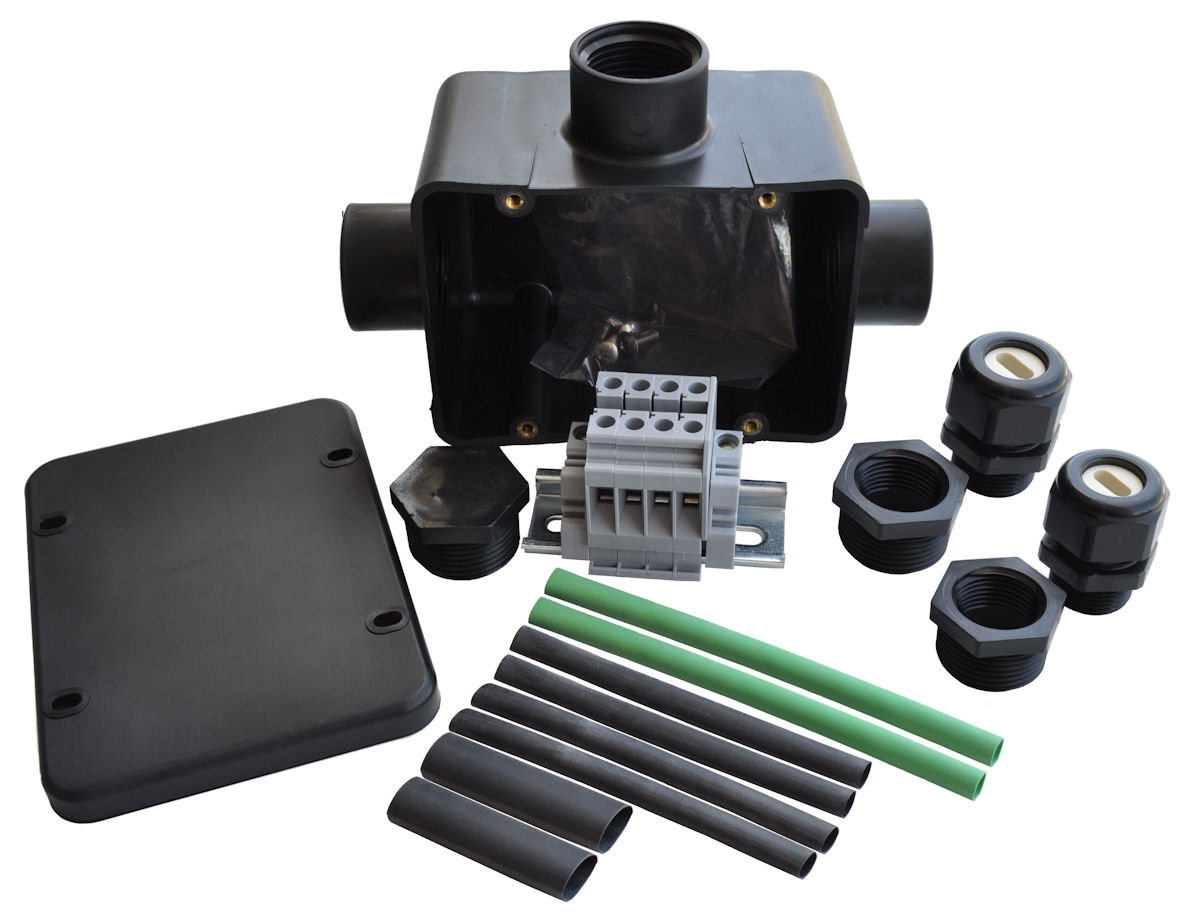

RGPK POWER CONNECTION KIT

The RGPK power connection kit is used for terminating SR or CW heater cables into a watertight enclosure through a CGB fitting in roof & gutter applications. Click on the PDF link for more details.







RGPK

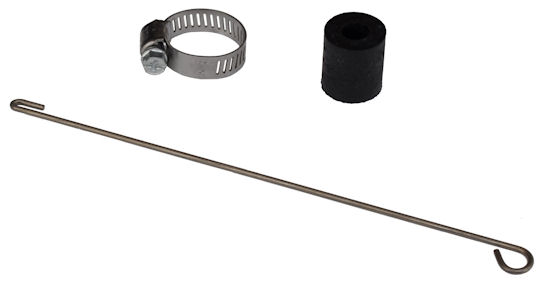

RDK DOWNSPOUT HANGER

The RDK dowspout hanger is used for hanging an SR or CW heater cable in a gutter downspout to keep downspouts free of snow and ice buildup. Click on the PDF link for more details.





RDK

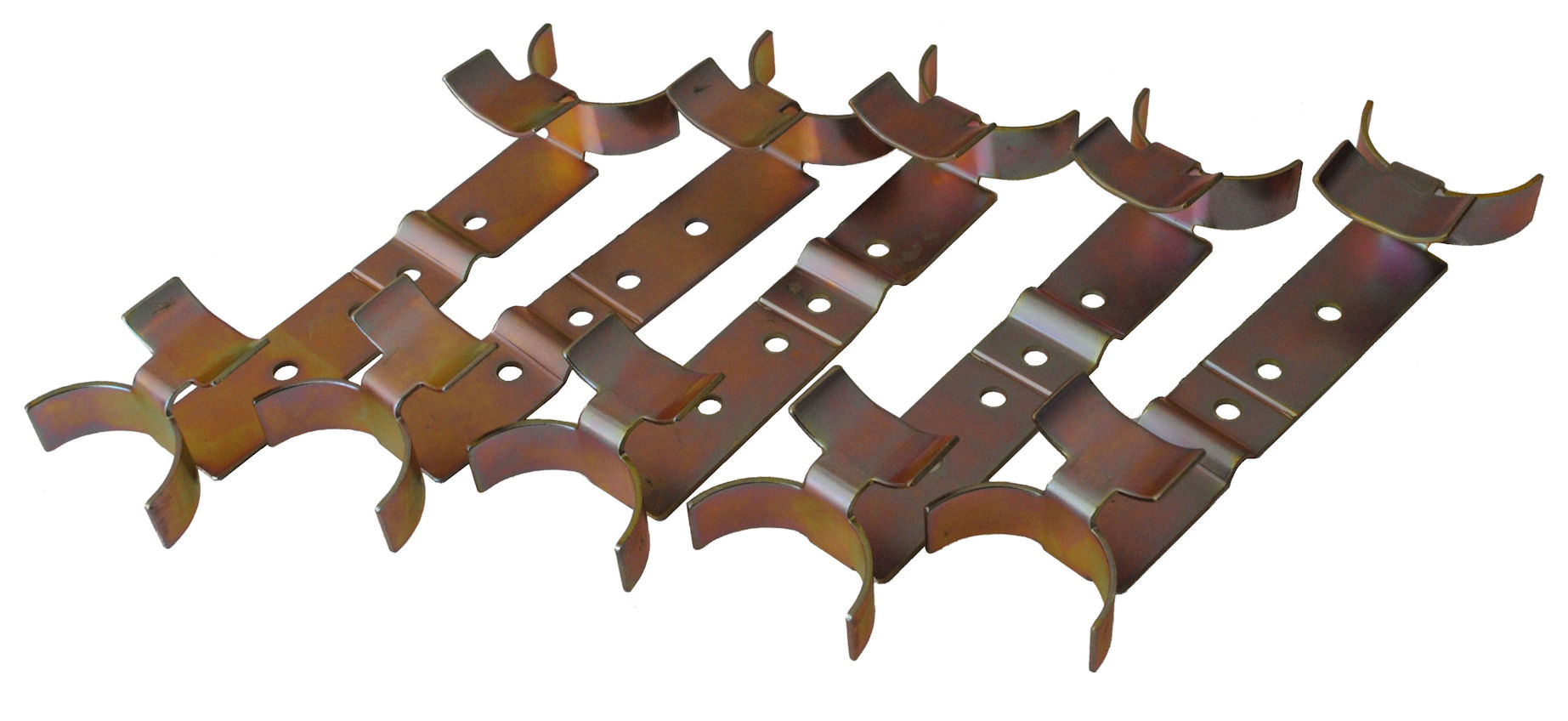

RCK ROOF CLIPS

RCK roof clips are used for securing SR or CW heater cables for roof & gutter applications to most roofing materials. Click on the PDF link for more details.





RCK

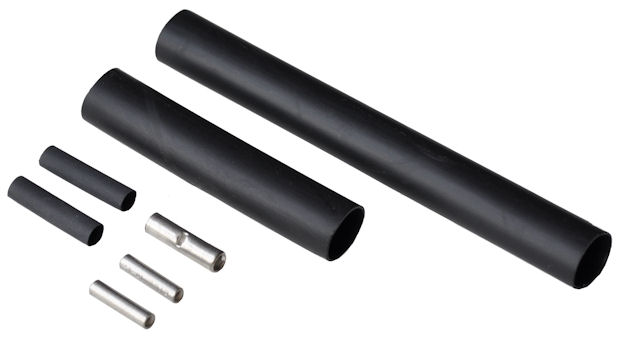

HSS INLINE SPLICE KIT

The HSS inline splice kit is used for splicing SR or CW heater cables in roof & gutter applications. Click on the PDF link for more details.





HSS

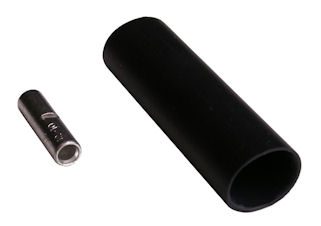

HSE-2 END TERMINATION KIT

The HSE end termination kit is used for termination SR or CW heater cables. Click on the PDF link for more details.





HSE

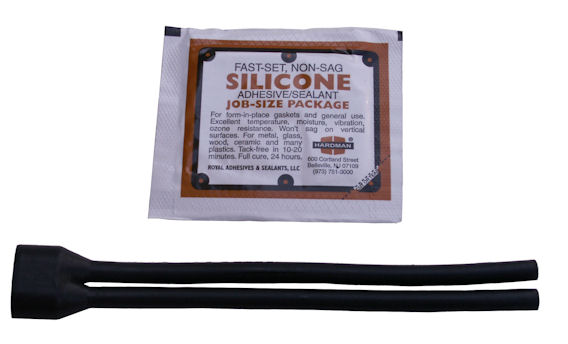

PTB POWER TERMINATION BOOT

The PTB power termination boot is for SR cables only and isolates each of the conductors to prevent arcing. It is a quick termination method.





PTB
